CNC Machined Parts for Industrial Machinery
Replacement parts, jigs, fixtures, shafts and wear components for machines that are already running on a factory floor. Send a drawing, a sketch with dimensions, or the worn part itself.
Problems buyers bring us in this sector
Maintenance and machine-building work arrives in a hurry and usually without a complete drawing. These three problems come up every week.
“The machine is down and the original supplier is gone”
Send photographs with a ruler in the frame first. If we need the part, post it: we measure it on the CMM, draw it, send you the drawing to approve, then cut. The drawing stays yours for the next time.
“Nobody will make just one”
We will. There is no minimum order — one replacement part is a normal order here, quoted in 16 hours like anything else.
“The replacement wore out faster than the original”
Usually material or hardness, not machining. Tell us how the part failed and we will suggest a material and heat treatment rather than copy a part that did not last — wear parts are cut on wire EDM after hardening so the profile cannot move.
What we machine for machine builders and maintenance teams
Half of this work is reverse-engineered: an obsolete part fails, the original supplier is gone, and someone needs it made. We are set up for exactly that — no minimum order, and one part is a normal order here.
Replacement and spare parts
Obsolete components remade from a drawing, a sketch, or the broken part measured on our CMM.
Shafts, bushings and spacers
Turned parts in steel, stainless and bronze, ground finish where the drawing calls for it.
Jigs and fixtures
Workholding, locating nests and assembly fixtures built to your datum scheme.
Wear components
Guides, wear plates, gibs and slides in hardened tool steel, cut on wire EDM after heat treatment.
Gears, sprockets and cams
Profiles cut on wire EDM straight from plate, tooth form held to the drawing.
Machine guards and panels
Sheet-metal guards, brackets and covers, powder coated to your colour.
What these parts are usually made from
Tool steel and 4140 where the part wears, stainless where it is washed down, bronze and POM where it slides.
What we watch on a machinery drawing
Fits, hardness and the dimension nobody wrote down
Replacement parts usually arrive with an incomplete drawing. We measure what you send, write down what we find, and confirm the fits with you before cutting — because the bore that has to press onto a shaft matters more than the ten dimensions around it.
- Shaft and bore fitsISO 286 IT6 – IT8
- Turning diameterØ 3 – 250 mm
- Milling envelope800 × 600 × 500 mm
- Hardened partsCut on wire EDM after heat treatment
- Minimum orderNone — one part is fine
- Unmarked dimensionsISO 2768-mK
What buyers in this industry ask
I do not have a drawing, only the broken part. Can you still quote?
Can you make just one?
Can you harden the part as well?
How we make them
CNC Milling

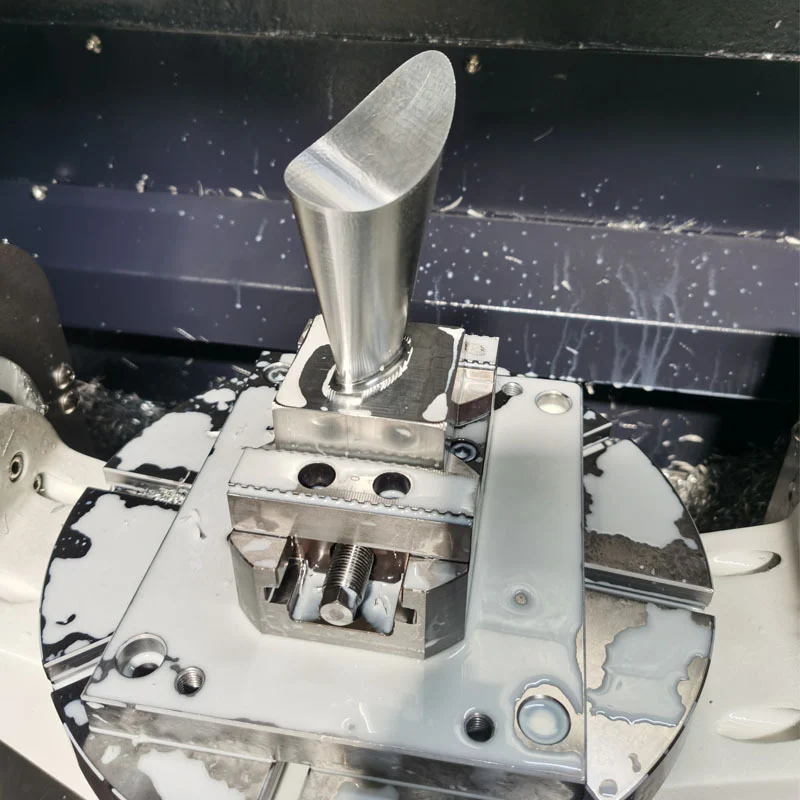

Housings, plates and brackets on 2/3/4-axis centres. CNC milling →
Wire & Sinker EDM
Hardened steel, keyways and sharp internal corners. Wire EDM →
Inspection
First article on the CMM before the run continues. Quality →
Send the drawing. You will have a price and a lead time in 16 hours.
STEP, IGES, X_T, DWG, DXF or PDF. Metric or inch. No minimum order.
